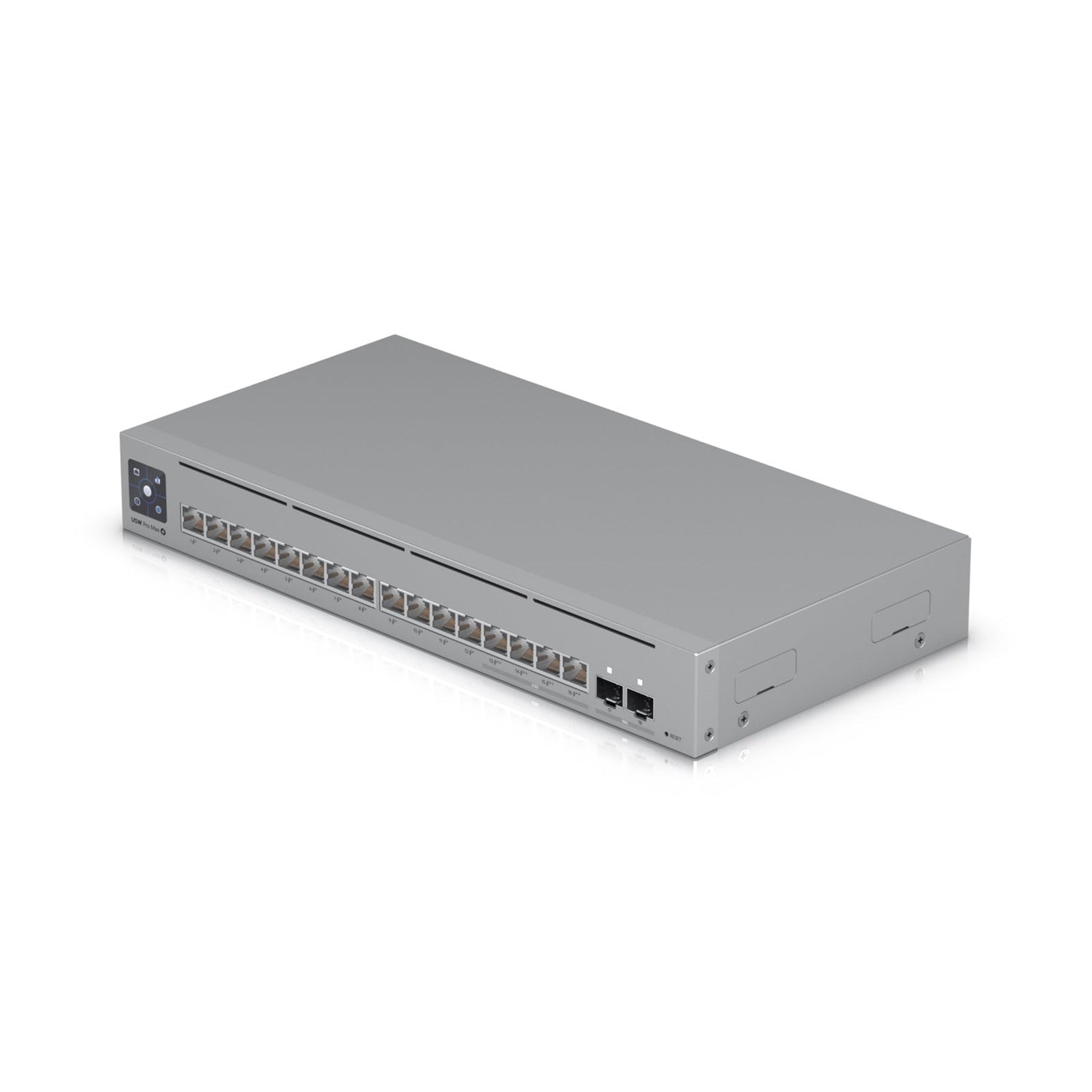

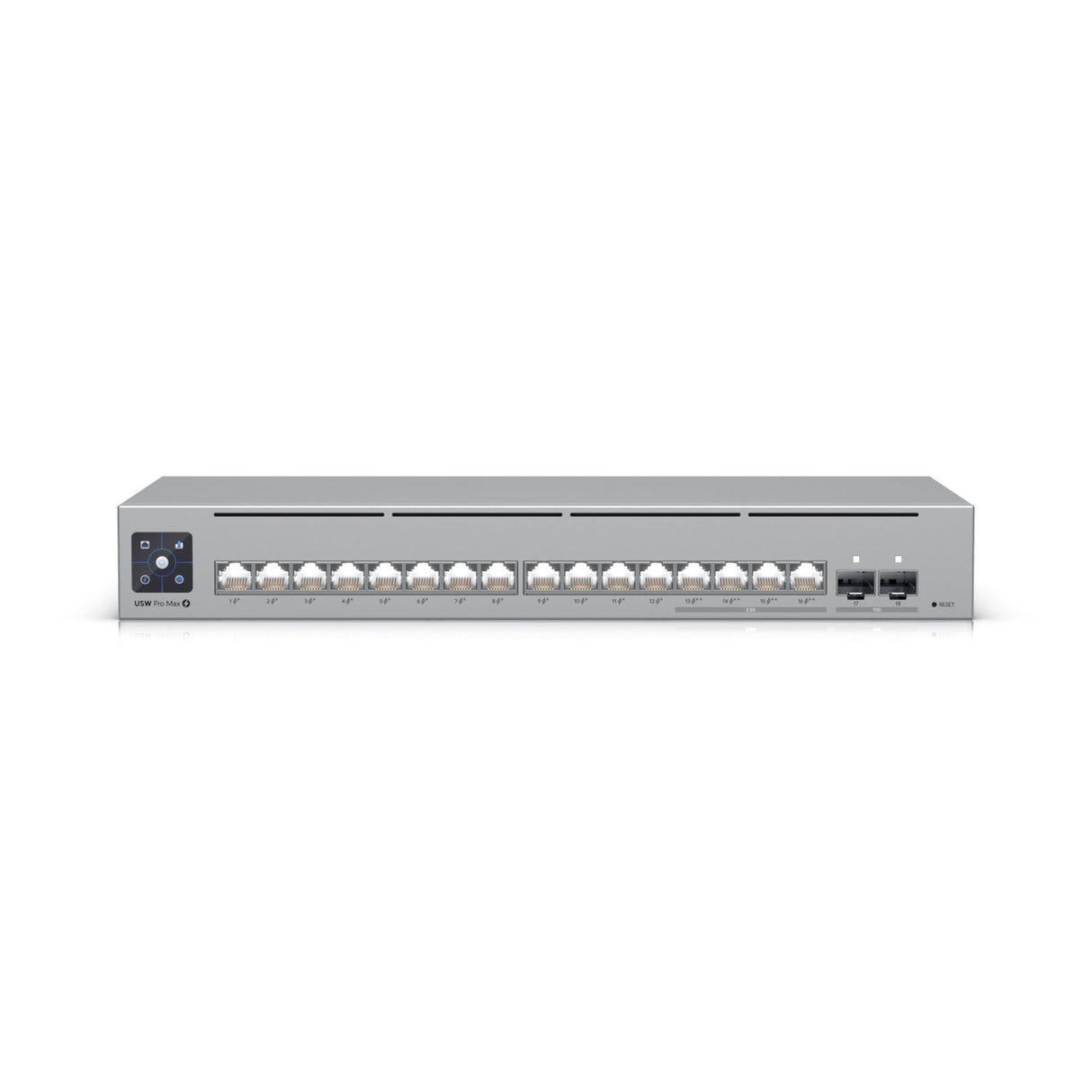

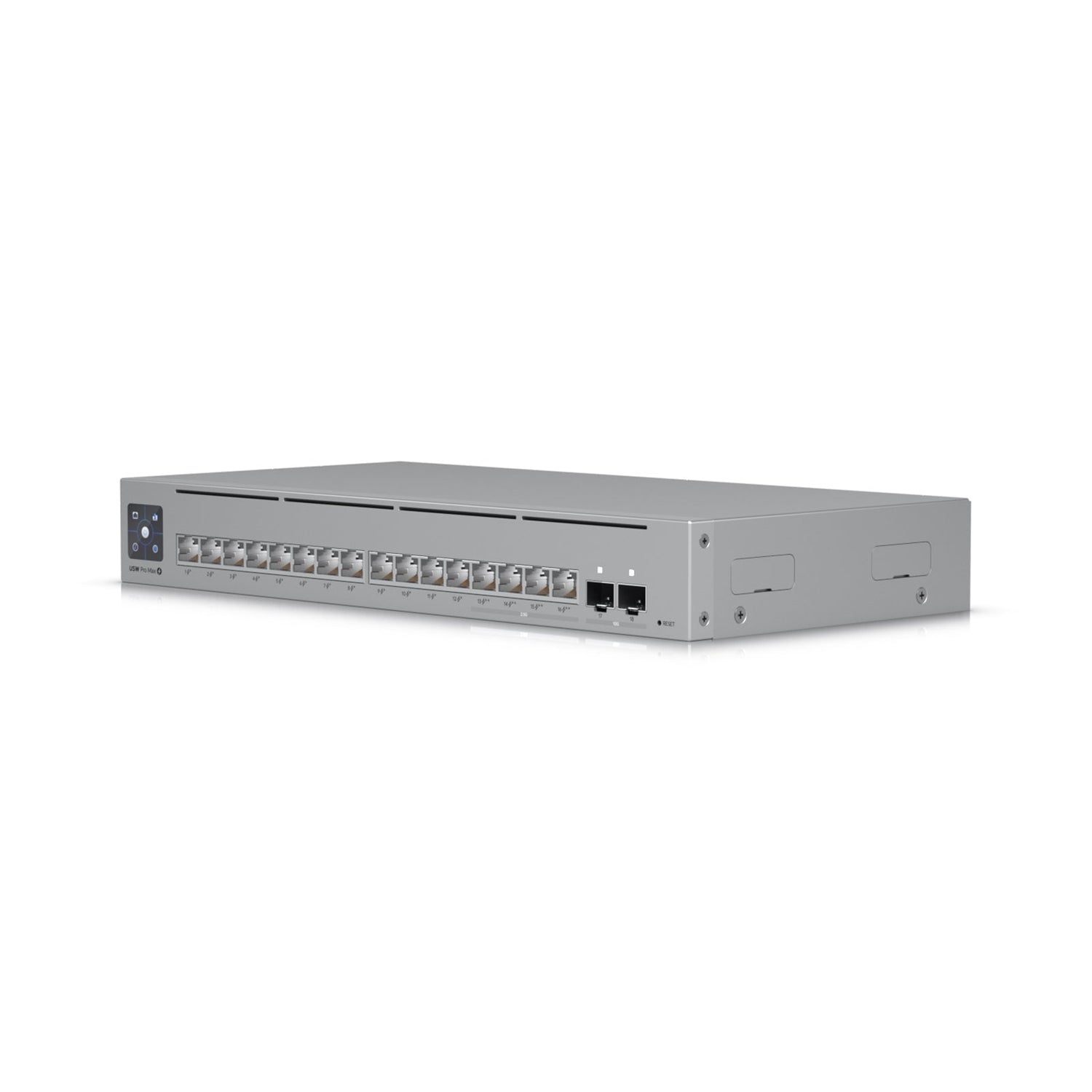

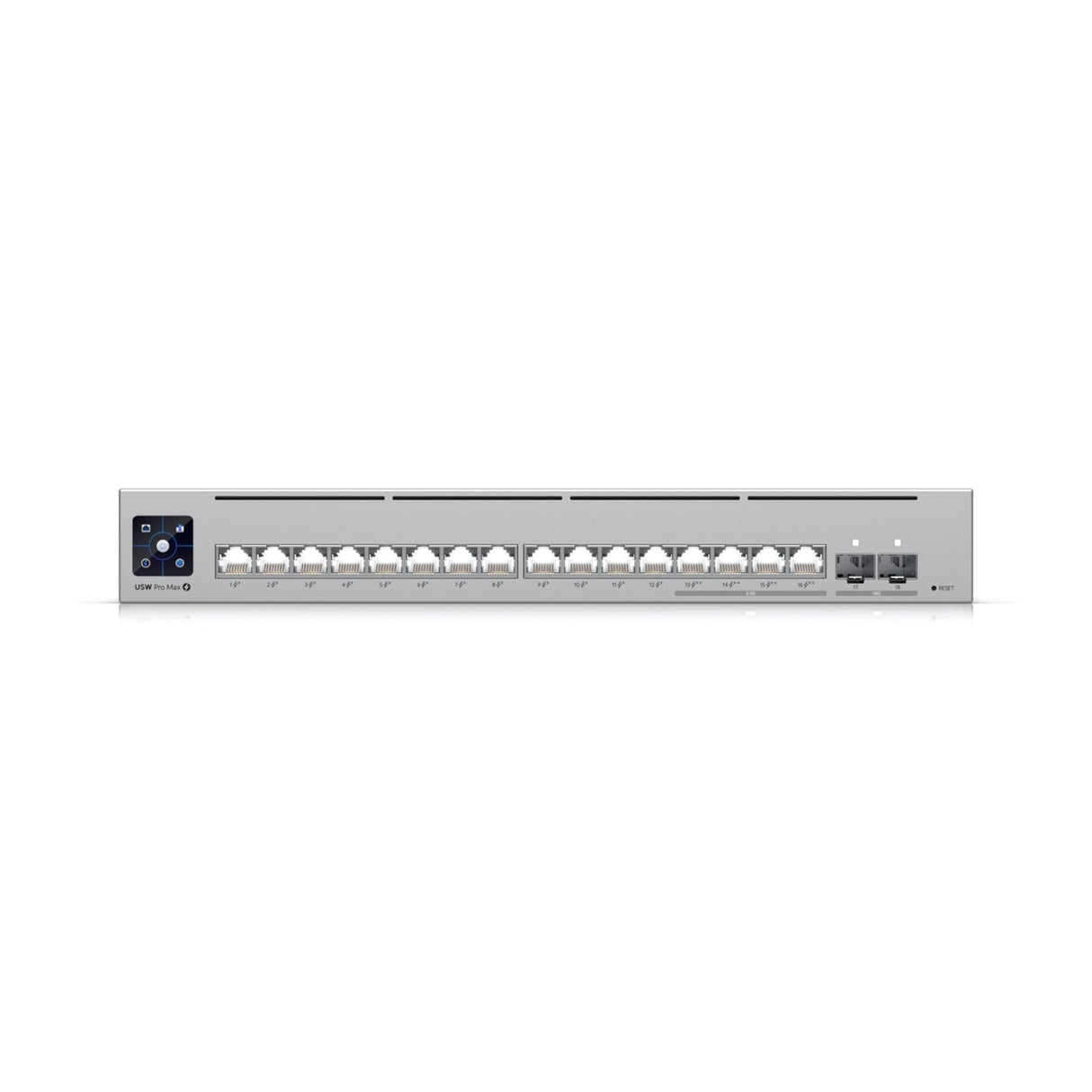

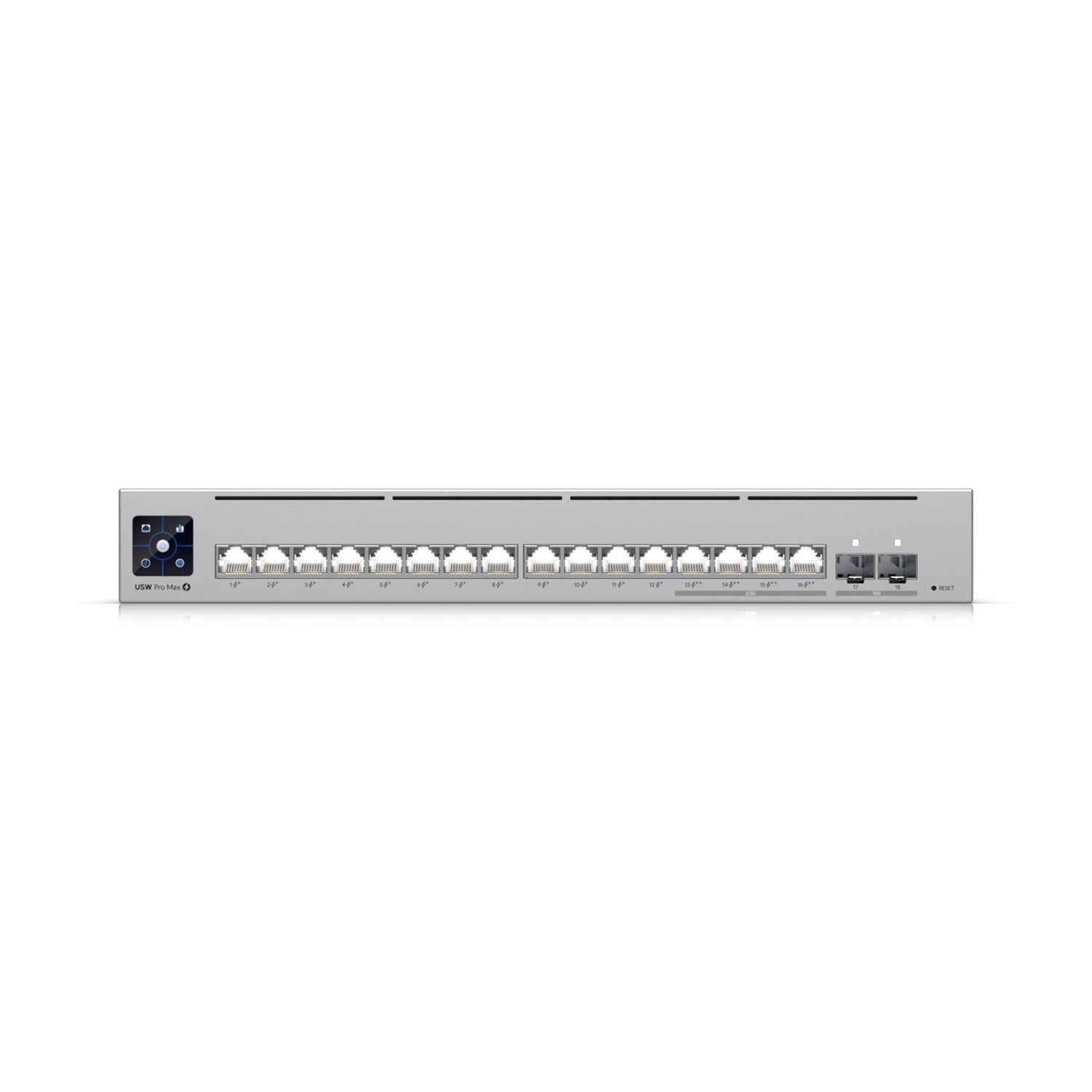

Ubiquiti USW-PRO-MAX-16-POE UniFi Pro Max 16 Port Gigabit Layer 3 Managed POE Switch
£417.86
16‑Port Layer 3 Etherlighting Switch with 2.5 GbE and PoE++

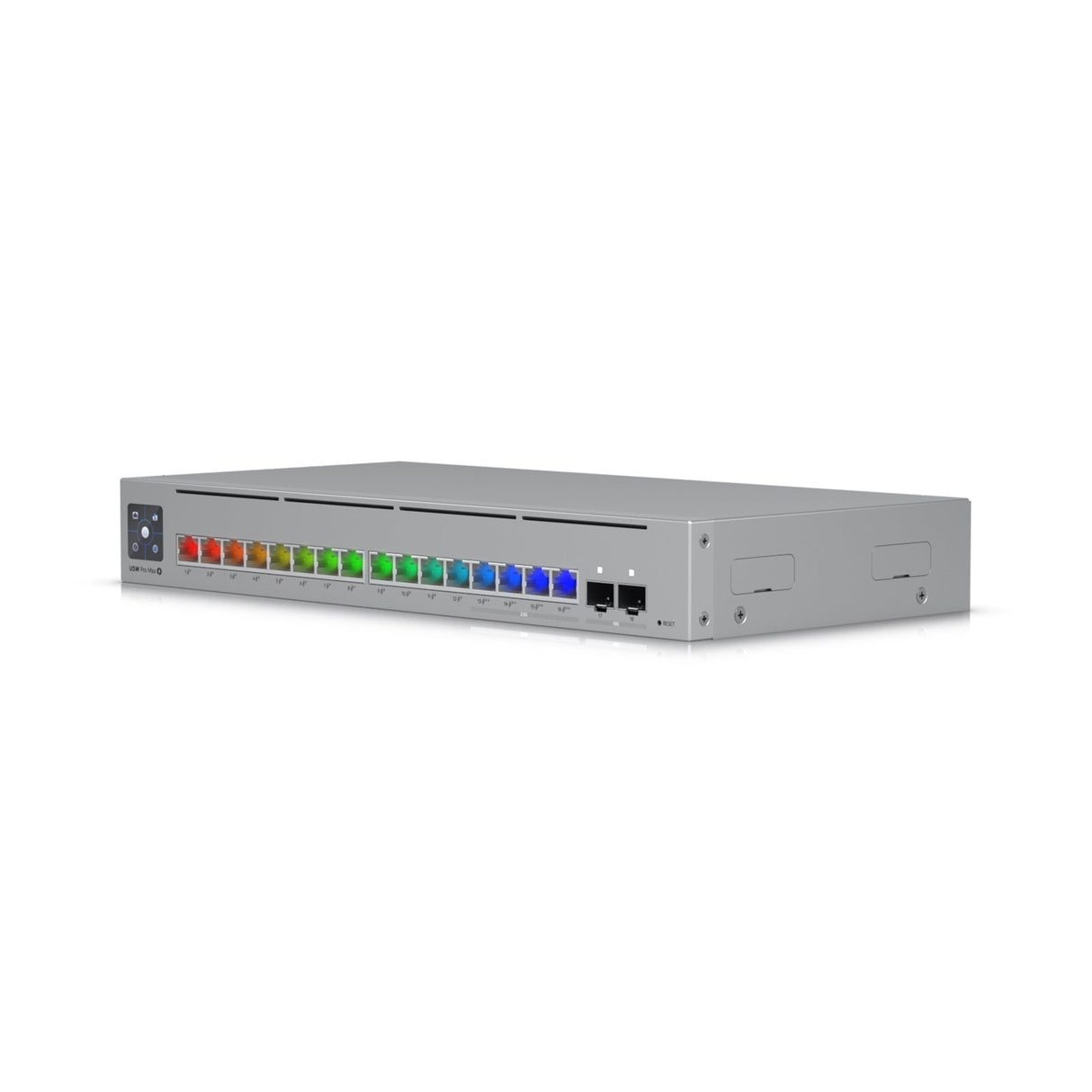

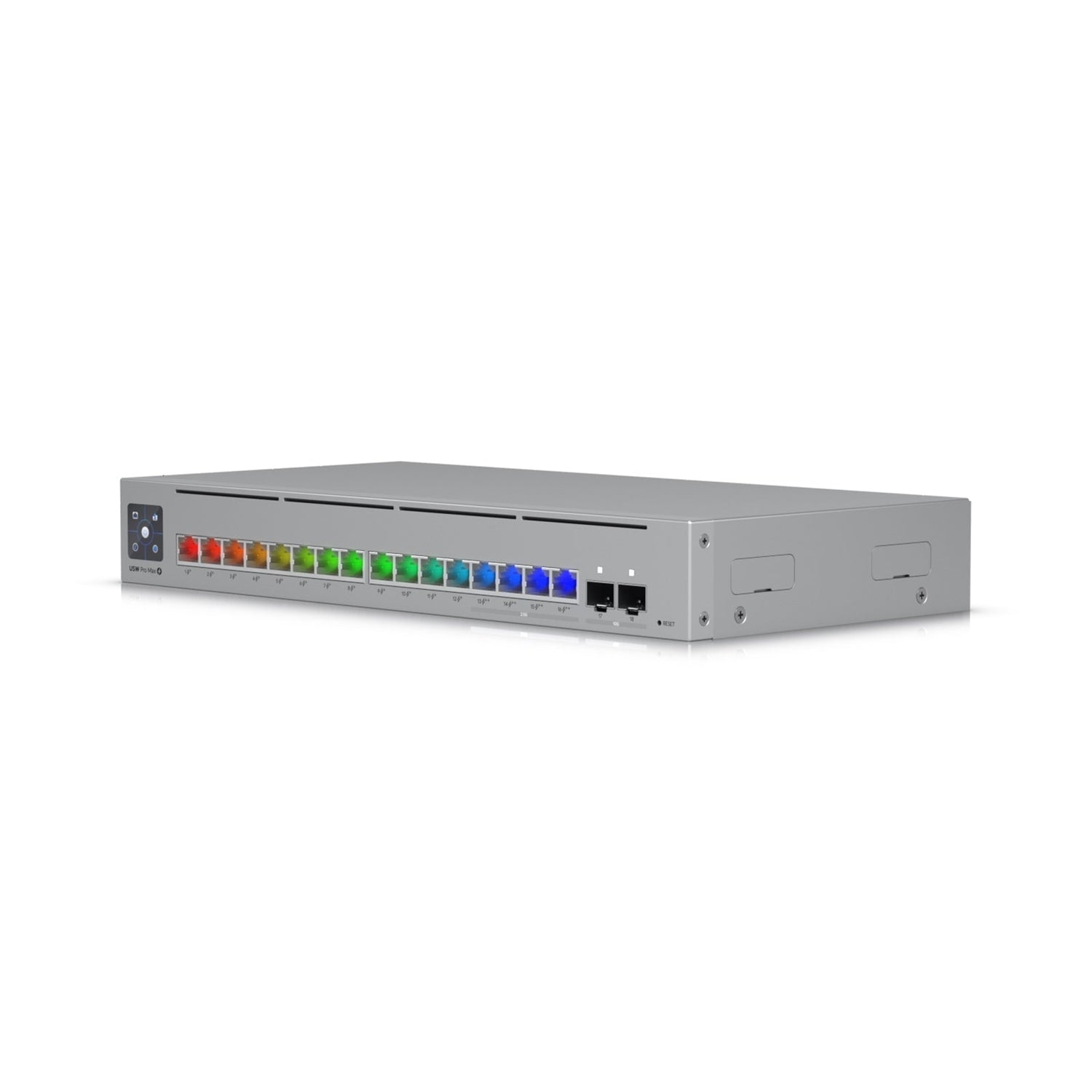

A 16‑port, Layer 3 Etherlighting switch with 2.5 GbE, PoE++ output, and versatile mounting options. Etherlighting ports illuminate to indicate port location, speed/link, and native VLAN/network.
Key Features
- 16‑port Layer 3 Etherlighting switch
- Etherlighting ports for visual indication of:
- Port location
- Speed/link status
- Native VLAN/network
- (4) 2.5 GbE PoE++ ports
- (12) GbE PoE+ ports
- (2) 10G SFP+ ports
- 180W total PoE availability
- Versatile mounting:
- Desktop
- Wall
- Rack (with optional rack mount kit)
- Silent, fanless cooling system
Technical Specifications
Hardware Overview
| Category | Details |
|---|---|
| Total Ports | 16 RJ45 + 2 SFP+ |
| Etherlighting Ports | Indicate port location, speed/link, and native VLAN/network |
| PoE Ports | (12) GbE PoE+ ports, (4) 2.5 GbE PoE++ ports |
| SFP+ Ports | (2) 10G SFP+ ports |
| Total PoE Budget | 180W total PoE availability |
| Cooling | Silent, fanless |
| Mounting Options | Desktop, wall, rack (with optional rack mount kit) |
Physical
| Specification | Details |
|---|---|
| Dimensions | 325.1 x 160 x 43.7 mm |
| Dimensions (in) | 12.8 x 6.3 x 1.7" |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | SGCC steel |
Interfaces
Management Interface
- Ethernet In‑Band
Networking Interface
- (12) GbE RJ45 ports
- (4) 1/2.5 GbE RJ45 ports
- (2) 10G SFP+ ports
PoE Interface
- (12) PoE/PoE+ (Pins 1, 2+; 3, 6‑)
- (4) 60W PoE++
- Pair A: 1, 2+; 3, 6‑
- Pair B: 4, 5+; 7, 8‑
Performance
| Specification | Details |
|---|---|
| Total Non‑Blocking Throughput | 42 Gbps |
| Switching Capacity | 84 Gbps |
| Forwarding Rate | 62.496 Mpps |
Power
| Specification | Details |
|---|---|
| Power Method | DC adapter |
| Power Supply | 54V, 210W |
| Max Power Consumption | 30W (excluding PoE output) |
| Total Available PoE | 180W |
| Max PoE Wattage per Port (PSE) | PoE: 15.4W |
| PoE+: 30W | |
| PoE++: 60W | |
| Voltage Range PoE Mode | PoE: 44—57V |
| PoE+/PoE++: 50—57V |
Controls & Display
| Specification | Details |
|---|---|
| LCM Display | (1) 1.3" touchscreen |
| Button | Factory reset |
Environmental
| Specification | Details |
|---|---|
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
Certifications
- CE
- FCC
- IC
Layer 2 Features
- IGMP snooping
- STP / RSTP with priorities and port‑level disable
- Port isolation
- Storm control
- Voice VLAN
- Port mirroring
- LACP port aggregation
- Multicast / broadcast rate limiting
- MAC address blocking
- Flow control
- 802.1X control
- Jumbo frames
- Proprietary loop protection
- DHCP snooping / guarding
- Egress rate limit
- LLDP‑MED
- Port restricted by MAC
- Device isolation with ACLs
Layer 3 Features
- DHCP for locally‑managed networks
- DHCP relay
- Inter‑VLAN routing between networks on same switch
- Static routing between local networks
- Network isolation with ACLs
