XH-M229 ATX Adapter
£6.99

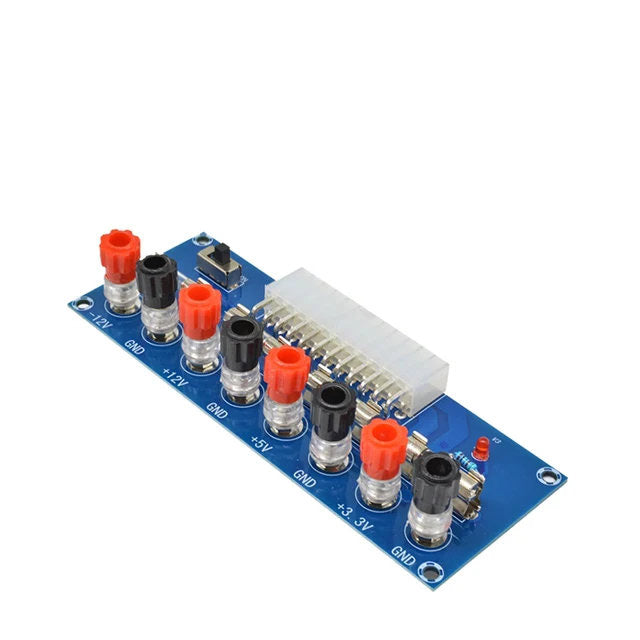

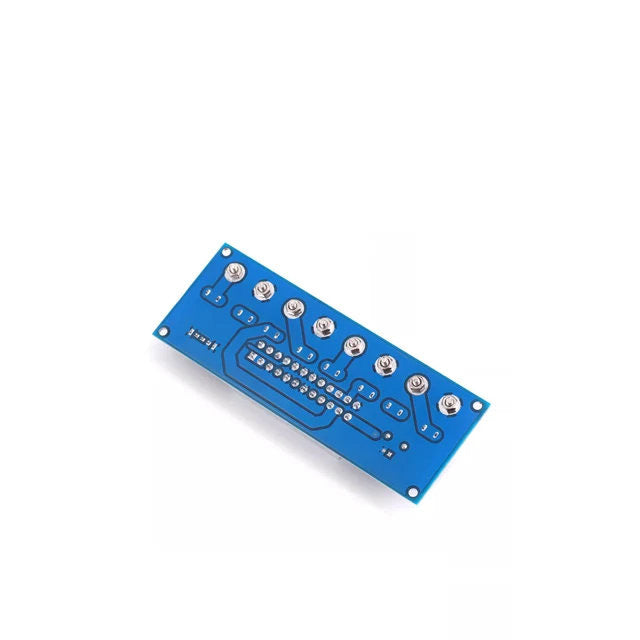

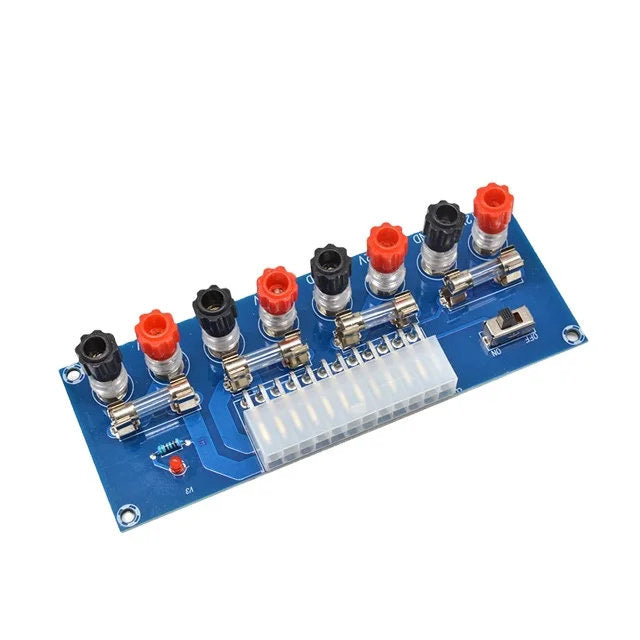

XH-M229 Desktop PC ATX2 24-Pin Breakout Board Power Supply Adapter & Test Module
Reuse an old desktop PC ATX2 power supply with the XH-M229 breakout board. This adapter converts a standard ATX power supply into accessible, fused voltage outputs for compatible projects or test equipment.
Key Features
-
Designed for ATX2 24-pin desktop PC power supplies
-
Breaks out 12V, -12V, 5V, and 3.3V outputs
-
5A fused supply
-
Separate negative (-ve) terminals
-
Switchable operation — no jumper required
-
Pilot light on indicator
Compatibility & Connections
-
Can be used with 20-pin ATX1 power supplies
-
Insert the 20-pin socket into the pins nearest to the power switch
-
Connect the 4-pin CPU 12V plug to the remaining 4 pins
-
Electrical Outputs
| Output Voltage | Notes |
|---|---|
| 12V | Fused |
| -12V | Fused |
| 5V | Fused |
| 3.3V | Fused |
A practical solution for powering compatible voltage projects or test gear using an existing ATX power supply.
