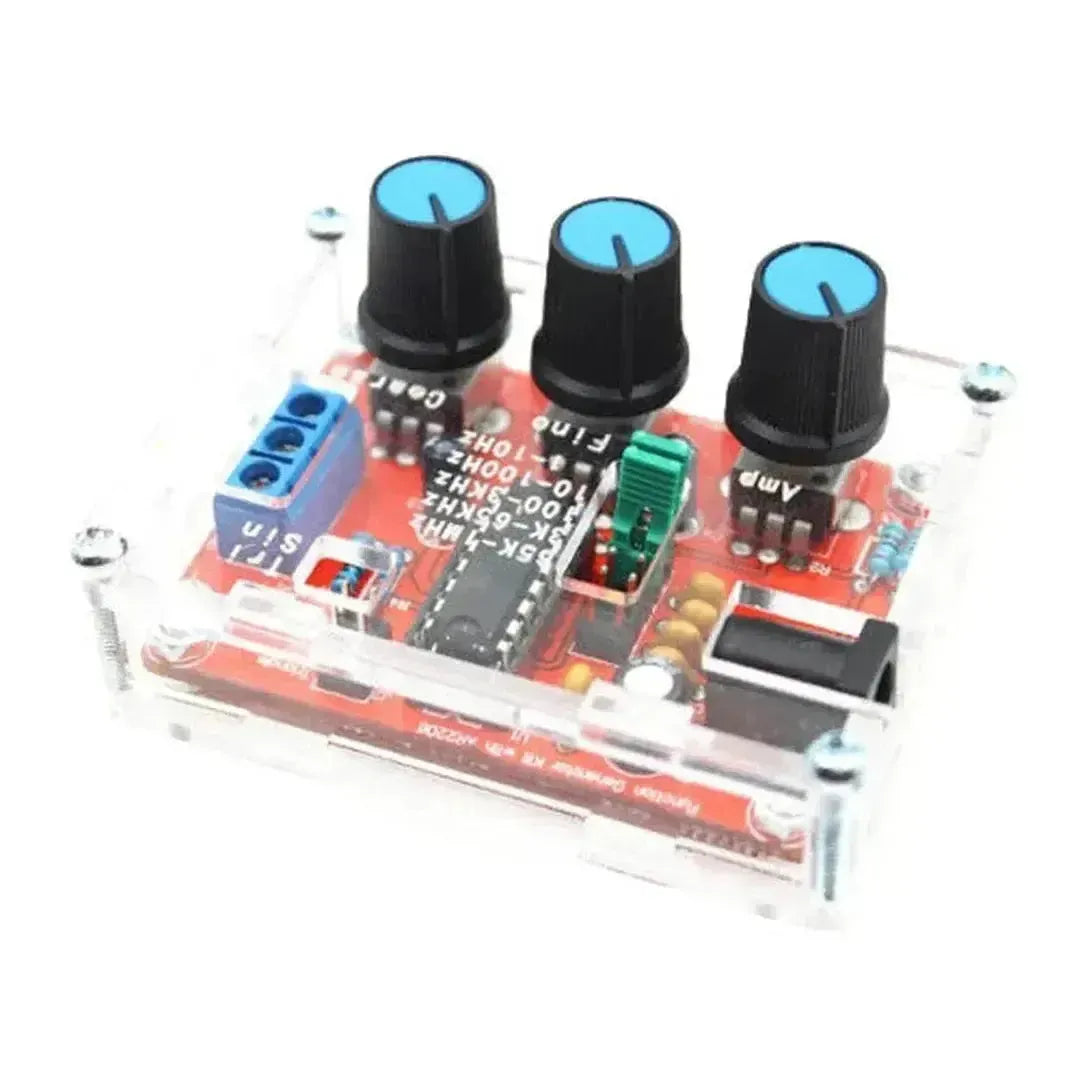

XR2206 Signal Function Generator Kit

£ 7.91
(inc VAT)
50 Sold

Delivery and Shipping

Enjoy free shipping on all orders. We dispatch purchases within 1-2 business days for swift delivery, but please note that in some cases, such as international shipments, dispatch and delivery times may be longer.

Description

Introducing the XR2206 Function Signal Generator DIY Kit:

Create your own customizable signal generator with our XR2206 DIY Kit. This kit allows you to generate a wide range of waveforms, including Square, Sine, and Triangle signals, with adjustable frequency and amplitude settings.

Specifications:

- Voltage Supply: 9-12V DC Input
- Waveforms: Square, Sine & Triangle
- Impedance: 600 Ohm ± 10%
- Frequency Range: 1Hz - 1MHz

Sine Wave:

- Amplitude: 0 - 3V at 9V DC input
- Distortion: Less than 1% (at 1kHz)
- Flatness: +0.05dB 1Hz - 100kHz

Square Wave:

- Amplitude: 8V (no load) at 9V DC input
- Rise Time: Less than 50ns (at 1kHz)
- Fall Time: Less than 30ns (at 1kHz)
- Symmetry: Less than 5% (at 1kHz)

Triangle Wave:

- Amplitude: 0 - 3V at 9V DC input
- Linearity: Less than 1% (up to 100kHz) 10mA

Package Included:

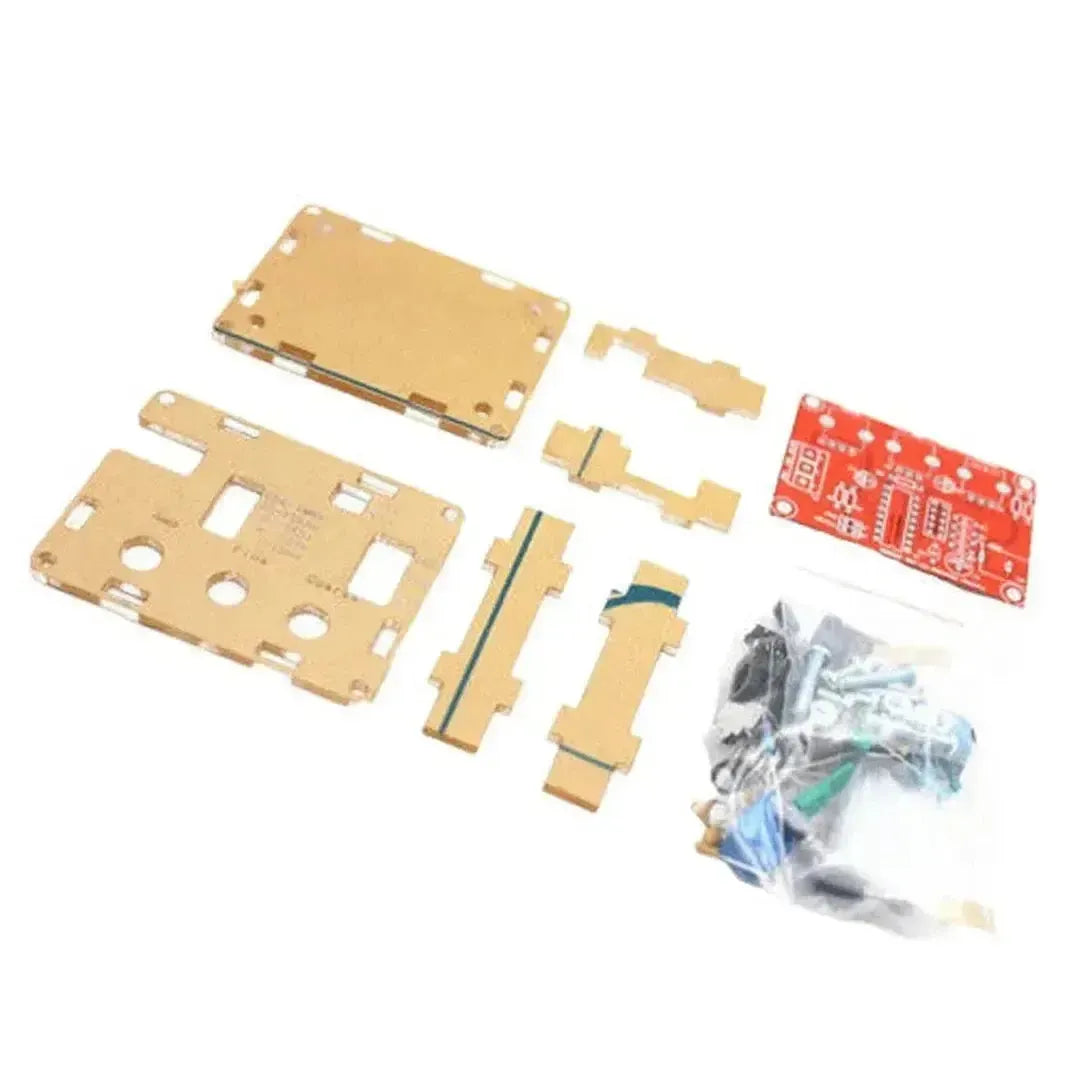

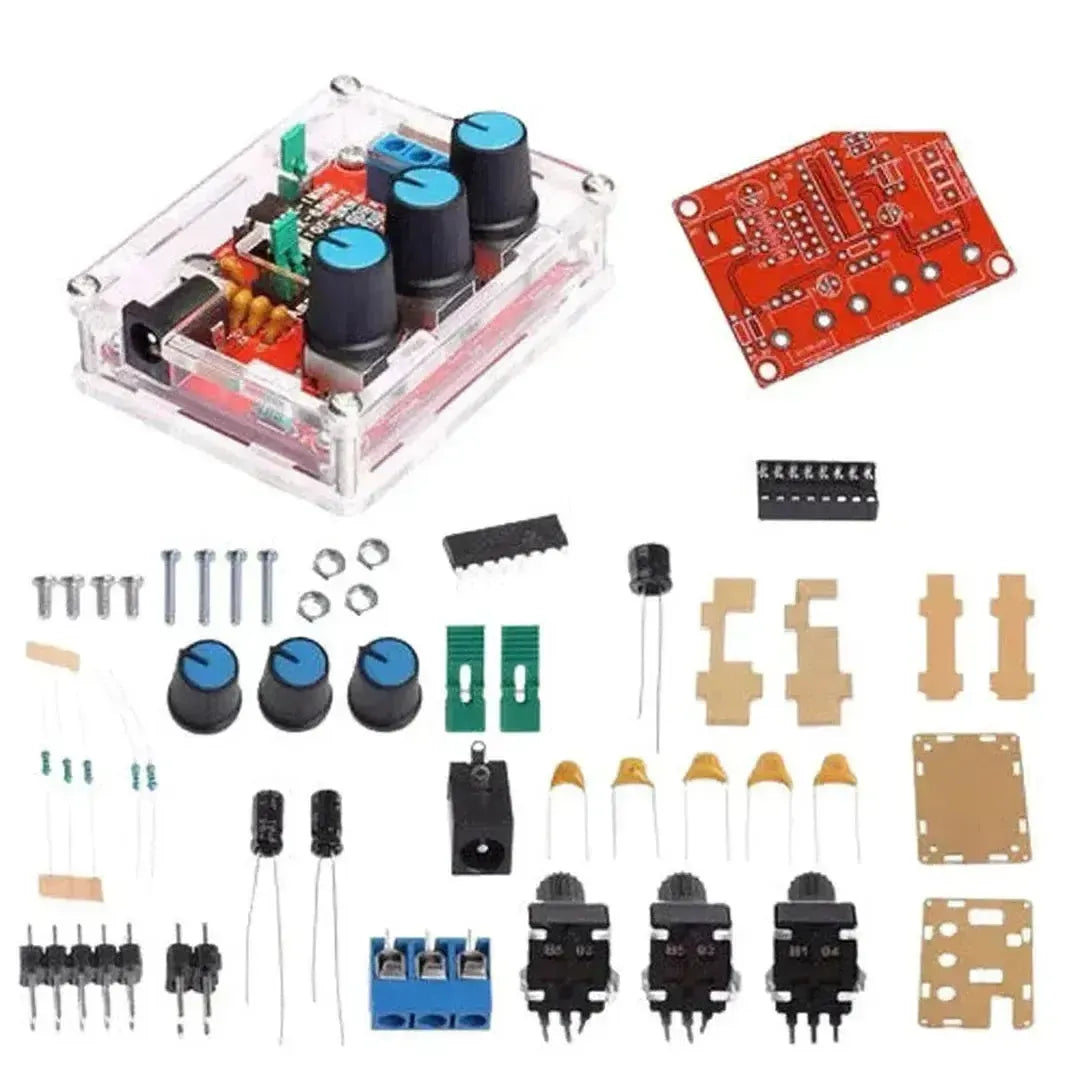

1 x XR2206 Function Signal Generator DIY Kit with Case, capable of generating Triangle and Square Output signals within a frequency range of 1Hz to 1MHz.

This DIY kit offers you the opportunity to build a versatile signal generator that can be adjusted to suit your specific requirements. It comes with a protective case, ensuring your generator is safe and easy to use. Whether you need to test electronic circuits or perform experiments, our XR2206 Function Signal Generator DIY Kit is the perfect tool to have in your electronic DIY arsenal. Explore the fascinating world of waveforms and experiment with various frequency and amplitude settings with this compact and user-friendly DIY kit.
