Gigabyte B860 AORUS ELITE WIFI7 ICE Intel 1851 Socket Motherboard

Name: Gigabyte B860 AORUS ELITE WIFI7 ICE Intel 1851 Socket Motherboard
Brand: GIGABYTE
Price: 223.86 GBP
Availability: InStock

£223.86

(inc VAT)

Free Delivery: Friday 11th - Monday 14th.
If You Order In The Next 2hrs 15mins

Delivery and Shipping

Order Processing

Orders are typically dispatched within 1-3 working days.

Delivery Options

Royal Mail 48: £1.50 on orders up to £20.
Royal Mail Tracked 48: Free on orders over £20.
DPD Next Day: Free on orders over £50 or £6.99.
International Shipping: Available at checkout.

You’ll receive tracking details as soon as your order ships track your order here. For full details, please see our Shipping Policy.

Free Returns

Buy with confidence. If you're not completely satisfied with your purchase, you can return eligible items within 60 days of delivery. Products must be unused, in their original condition and packaging, and accompanied by proof of purchase.

No hassle if there's a problem. If your item arrives damaged, defective, or incorrect, simply get in touch and we'll work quickly to make it right.

Simple returns, fast refunds. Once your return has been received and inspected, approved refunds are issued to your original payment method. View our full Refund Policy for complete details and exclusions.

Gigabyte B860 AORUS ELITE WIFI7 ICE Intel 1851 Socket Motherboard

£223.86

GIGABYTE B860 ATX Motherboard for Intel® Core™ Ultra (Series 2)

Designed for next-generation Intel® Core™ Ultra processors, this GIGABYTE B860 ATX motherboard delivers high-end power delivery, fast DDR5 support, advanced connectivity, and user-friendly installation features.

Key Features

Supports Intel® Core™ Ultra Processors (Series 2)
LGA1851 socket with support for Intel® Core™ Ultra processors (see GIGABYTE website for the latest CPU support list).
Robust Power Design
Digital twin 14+1+2 phases VRM solution.
High-Speed DDR5 Memory
Dual Channel DDR5 architecture
4 × DDR5 DIMM slots, up to 256 GB (64 GB per DIMM)
Support for DDR5 9200(O.C) down to 5600 MT/s
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
XMP memory module support
D5 Bionic Corsa for Infinite Memory Performance
AI PerfDrive
Provides optimal and customizable BIOS preset profiles.
User-Friendly Design & Installation
WIFI EZ-Plug for quick Wi-Fi antenna installation
EZ-Latch Plus: PCIe and M.2 slots with quick-release, screwless design
EZ-Latch Click: M.2 heatsinks with screwless design
Sensor Panel Link: onboard video port for hassle-free in-chassis panel setup
Intuitive UI & Tools
Friendly UI with Multi-Theme support, AIO fan control, and Q-Flash Auto Scan in BIOS and software.
Ultra-Fast Storage
3 × M.2 slots total
1 × CPU-attached PCIe 5.0 x4 M.2
2 × chipset PCIe 4.0 x4/x2 M.2
Advanced Thermal Design
VRM Thermal Armor Advanced
M.2 Thermal Guard Ext.
High-Speed Networking
Realtek® 2.5GbE LAN

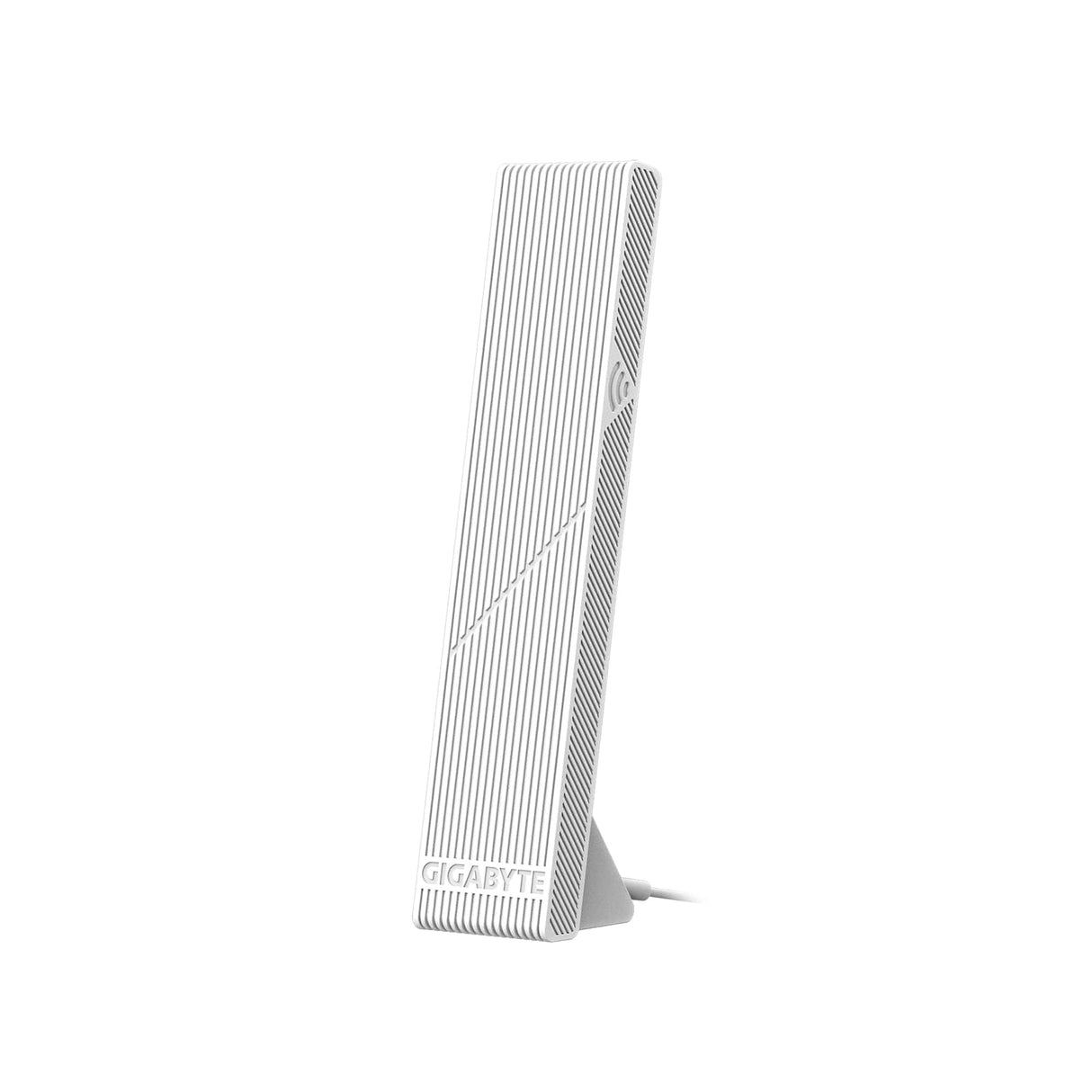

Wi-Fi 7 with directional ultra-high gain antenna
Extended Connectivity
USB4 Type-C with DP-Alt, HDMI, and DisplayPort outputs.

Specifications

CPU

Item	Details
Socket	LGA1851
CPU Support	Intel® Core™ Ultra Processors
L3 Cache	Varies with CPU

Chipset

Item	Details
Chipset	Intel® B860 Express

Memory

Item	Details
Type	DDR5
Supported Speeds	9200(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s
Slots	4 × DDR5 DIMM sockets
Maximum Capacity	Up to 256 GB (64 GB per DIMM)
Architecture	Dual channel
ECC Support	ECC Un-buffered DIMM 1Rx8/2Rx8 (operates in non-ECC mode)
Non-ECC Support	Un-buffered DIMM 1Rx8/2Rx8/1Rx16
XMP Support	Support for Extreme Memory Profile (XMP) memory modules

(Supported memory types, speeds, and module counts may depend on CPU; refer to GIGABYTE’s “Memory Support List”.)

Onboard Graphics

Integrated Graphics Processor – Intel® HD Graphics support (graphics capabilities depend on CPU):

Port	Max Resolution & Standard
USB4® Type-C® (rear)	3840×2160 @ 144 Hz, DisplayPort output, supports DisplayPort 2.1
DisplayPort (rear)	3840×2160 @ 144 Hz, supports DisplayPort 2.1
HDMI (rear)	4096×2160 @ 60 Hz, supports HDMI 2.1 and HDCP 2.3
Front HDMI (internal link)	1920×1080 @ 30 Hz, supports HDMI 1.4

Supports up to quad-display simultaneously.

Audio

Item	Details
Codec	Realtek® Audio CODEC
Audio Type	High Definition Audio
Channels	2/4/5.1/7.1-channel
Digital Output	Support for S/PDIF Out

Channel configuration and jack functionality can be adjusted via audio software.

LAN

Item	Details
Controller	Realtek® 2.5GbE LAN chip
Speeds	2.5 Gbps / 1 Gbps / 100 Mbps

Wireless Communication

Two possible modules by PCB revision:

PCB rev. 1.0 – Realtek® Wi-Fi 7 RTL8922AE

802.11a/b/g/n/ac/ax/be
2.4 / 5 / 6 GHz bands
Wi-Fi 7 11be 160 MHz support
Bluetooth 5.4

PCB rev. 1.1 – MediaTek Wi-Fi 7 MT7925

802.11a/b/g/n/ac/ax/be
2.4 / 5 / 6 GHz bands
Wi-Fi 7 11be 160 MHz support
Bluetooth 5.4

(Actual throughput depends on environment and equipment. Wi‑Fi 7 features require Windows 11 SV3; no Windows 10 driver. 6 GHz availability depends on local regulations.)

Expansion Slots

From CPU:

Slot	Interface	Details
PCIEX16	PCIe 5.0	1 × PCI Express x16 slot, runs at x16. Supports a graphics card or an NVMe SSD only.

(If only one graphics card is used, install it in PCIEX16.)

From Chipset:

Slot	Interface	Details
PCIEX1_1, PCIEX1_2	PCIe 4.0	2 × PCI Express x16 slots, run at x1

Storage

From CPU:

Connector	Type	Support
M2A_CPU	M.2	Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD

From Chipset:

Connector	Type	Support
M2Q_SB, M2N_SB	M.2	Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD
SATA	4 × SATA	4 × SATA 6Gb/s connectors, RAID 0/1/5/10 for SATA devices

USB

From CPU:

1 × USB4® Type-C® port on rear panel

From Chipset:

1 × USB Type-C® port with USB 3.2 Gen 2 (via internal header)
2 × USB 3.2 Gen 2 Type-A ports (red, rear)
2 × USB 3.2 Gen 1 ports (via internal header)

From Chipset + USB 3.2 Gen 1 Hub:

4 × USB 3.2 Gen 1 ports (rear)

From Chipset + 2 × USB 2.0 Hubs:

8 × USB 2.0/1.1 ports (4 rear, 4 via internal headers)

Internal I/O Connectors

1 × 24-pin ATX main power connector
2 × 8-pin ATX 12V power connectors
1 × CPU fan header
1 × CPU fan/water cooling pump header
3 × system fan headers
1 × system fan/water cooling pump header
3 × addressable RGB Gen2 LED strip headers
1 × RGB LED strip header
3 × M.2 Socket 3 connectors
4 × SATA 6Gb/s connectors
1 × front panel header
1 × front panel audio header
1 × USB Type-C® header (USB 3.2 Gen 2)
1 × USB 3.2 Gen 1 header
2 × USB 2.0/1.1 headers
1 × Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2)
1 × HDMI port (Sensor Panel Link; actual support may vary by CPU)
1 × power button
1 × reset button
1 × Q-Flash Plus button
1 × reset jumper
1 × Clear CMOS jumper
